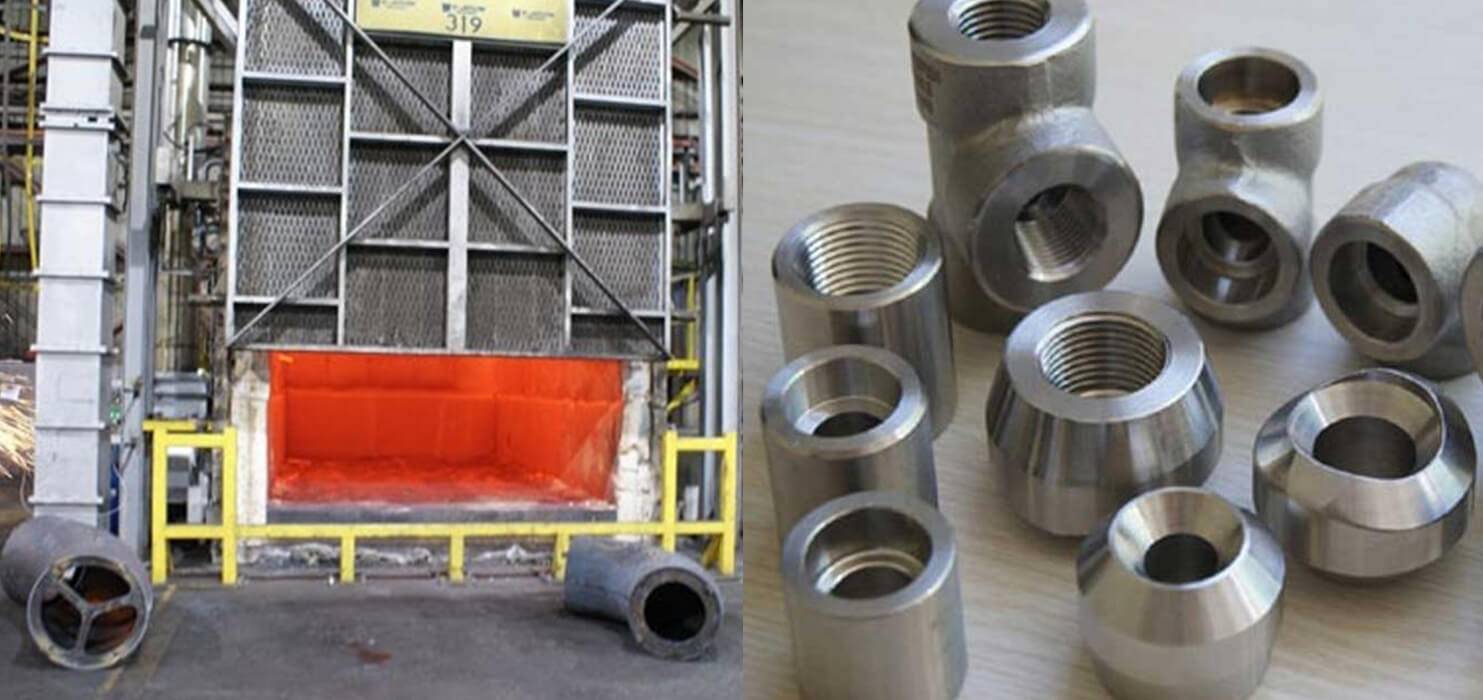

Monel forged fittings are high-performance components, but they are not commodities. They are specified for some of the world’s most demanding jobs, from seawater piping on an offshore oil rig to handling hydrofluoric acid in a chemical plant. In these environments, “good enough” is not an option. A single fitting failure can lead to a catastrophic leak, costly downtime, and severe safety hazards.
Because of these high stakes, the quality, integrity, and traceability of every fitting are paramount. This quality is not just claimed; it is verified through a rigorous system of established standards and metallurgical tests. For an engineer or procurement manager, understanding these quality standards is the key to sourcing a reliable and safe product.
The Foundation: ASTM B564 Specification
The primary “rulebook” for nickel-alloy forged fittings, including Monel, is ASTM B564. This specification is published by ASTM International, a global standards organization.
This standard is the foundation for quality. It precisely dictates the requirements for fittings made from various nickel alloys, including the two most common Monel grades:
- Monel 400 (UNS N04400)
- Monel K500 (UNS N05500)
An ASTM B564-compliant fitting ensures the manufacturer has adhered to strict rules governing:
- Manufacturing Process: The standard requires the parts to be made by forging, a process that kneads the metal, refines its grain structure, and makes it incredibly strong and durable.
- Chemical Composition: It provides an exact “recipe” for each grade, defining the required percentages of nickel, copper, iron, and other elements.
- Mechanical Properties: It sets the minimum standards for strength, including tensile strength and yield strength.
- Heat Treatment: This is especially critical for Monel K500, which must be “age-hardened” (a specific heat treatment) to achieve its signature high strength.
Verifying “What It Is”: Chemical Analysis (PMI)
The first step in verification is ensuring the fitting is made of the correct material. A mix-up, where a lower-grade alloy is accidentally substituted, could be disastrous.
The most common and effective test is Positive Material Identification (PMI).
- What it is: PMI is a fast, non-destructive test, typically performed with a handheld X-ray fluorescence (XRF) analyzer. The device is pointed at the fitting and, within seconds, it provides an exact breakdown of its elemental composition.
- Why it matters: PMI confirms that the part is genuine Monel 400 or K500 and not a counterfeit or incorrect alloy. It is the first line of defense in the quality assurance process.
Verifying “How Strong It Is”: Mechanical Testing
Once the material is confirmed, its mechanical strength must be proven. This is especially important for forged parts, as the process (and subsequent heat treatment for K500) fundamentally changes the metal’s properties. These tests are destructive, meaning they are performed on sample pieces from the same production batch.
- Tensile Test: This is the most important mechanical test. A sample of the material is clamped into a machine and pulled until it breaks. This test provides two crucial data points:
- Yield Strength: The amount of force the fitting can withstand before it starts to permanently deform.
- Tensile Strength: The maximum amount of force the fitting can take before it fractures.
- Hardness Test: This test (using a Rockwell or Brinell tester) presses a hard indenter into the metal’s surface to measure its resistance to deformation. For Monel K500, this is a quick and effective way to verify that the age-hardening heat treatment was performed correctly.
These mechanical tests are the only way to prove the fitting can handle the high pressures and mechanical stresses it was designed for. A reputable monel forged fittings manufacturer will always provide a Material Test Certificate (MTC) that clearly states the results of these tests.
Verifying “If It’s Flawless”: Non-Destructive Testing (NDT)
The final step is to check the finished fitting for any hidden flaws. The forging process, while creating a strong part, can potentially introduce surface imperfections like laps or cracks.
The most common NDT method for fittings is Liquid Penetrant Testing (PT).
- Step 1 (Clean): The fitting is thoroughly cleaned.
- Step 2 (Apply Penetrant): A brightly colored liquid dye (penetrant) is sprayed or brushed onto the surface. This dye is designed to seep into any microscopic cracks.
- Step 3 (Remove Excess): The excess penetrant is carefully cleaned from the surface.
- Step 4 (Apply Developer): A white, powdery developer is applied. This developer acts like a blotter, pulling the trapped dye out of any flaws.
- Step 5 (Inspect): Any cracks or defects show up as bright red lines against the white background, making them easy to spot.
This simple but effective test ensures that every fitting shipped is free from surface-breaking defects that could become a weak point under pressure.
In conclusion, the standards and testing that go into Monel forged fittings are not just formalities. They are a comprehensive quality assurance system that guarantees the chemical, mechanical, and structural integrity of every single part.
To source high-performance, fully tested, and certified Monel fittings for your critical applications, you can contact Neo Impex.
