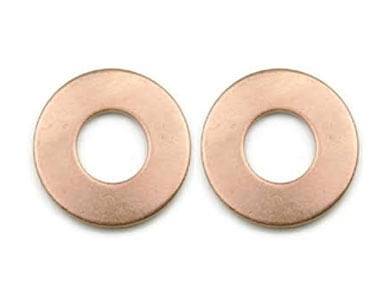

Copper washers are among the most versatile and critical small components in modern industry. At first glance, they appear simple—just a flat, reddish-brown ring. Yet, these humble components are trusted to perform high-stakes jobs that other materials cannot. They are responsible for creating leak-proof seals in high-pressure automotive brake lines and for ensuring safe, efficient, low-resistance connections in high-current electrical busbars.
This high performance is not an accident. A copper washer’s ability to seal or conduct is a direct result of a precise and carefully controlled manufacturing process. It is a journey of transformation, turning a raw industrial material into a precision-finished component.
The difference between a washer that leaks and one that seals perfectly, or a connection that overheats and one that runs efficiently, often comes down to the quality of its manufacturing. This article explores the step-by-step process of how high-quality copper washers are made.
Step 1: The Foundation – Selecting the Right Raw Material
The entire process begins with a critical choice: the raw material. For high-performance washers, manufacturers do not use just “any” copper. The industry standard is typically C110 (ETP – Electrolytic Tough Pitch) Copper.
This grade is chosen for one primary reason: purity.
C110 copper is 99.9% pure copper. This purity is essential for the washer’s two main functions:
- Electrical Conductivity: The electrical conductivity of copper is extremely sensitive to impurities. Even a tiny fraction of a percent of other elements can significantly increase resistance, causing connections to heat up and waste energy. The 99.9% purity of C110 ensures it delivers the maximum possible conductivity.
- Malleability (Sealing): Pure copper is exceptionally soft and ductile (malleable). This “softness” is what allows it to be “crushed” into place, forming a perfect, leak-proof gasket.
This raw material arrives at the manufacturing facility in the form of massive, heavy coils of sheet metal or as flat bar stock, all precision-rolled to the exact thickness required for the final washer.
Step 2: The Primary Method – High-Speed Stamping
For the vast majority of standard copper washers (e.g., flat washers, sealing washers), the manufacturing method of choice is high-speed stamping. This is a cold-forming process valued for its incredible speed, efficiency, and consistency.
The process is carried out on a mechanical power press, a machine that can deliver immense force in a rapid, repeating stroke.
Here is a breakdown of the stamping process:
- Feeding: The coil of C110 copper sheet is unwound and fed automatically into the power press.
- The Die Set: The “brains” of the operation is the stamping die. This is a highly specialized, custom-made tool built from hardened tool steel. For a simple washer, a compound die is often used. This type of die is brilliant in its efficiency: it performs two operations at the exact same time.
- The “Hit”: In a single stroke of the press (which can happen many times per second), the compound die simultaneously punches the inner hole (the ID) and the outer perimeter (the OD) of the washer.
- Ejection: The finished washer is punched completely through the die, and the “scrap skeleton” (the sheet of copper, now full of holes) is fed out the other side.
The use of a compound die is critical for quality as it ensures perfect concentricity—meaning the inner hole is perfectly centered within the outer circle. This is vital for ensuring the washer distributes the load of a bolt evenly.
Step 3: The Critical Cleanup – Deburring and Tumbling
The stamping process is a high-speed shearing action. As a result, every washer that comes off the press has two minor imperfections: a small “roll-over” edge where the punch first entered and a tiny, sharp burr on the opposite side where the metal sheared off.
This burr is a major problem. It is:
- Sharp and a hazard to handle.
- A point of weakness that can crack.
- A “high spot” that prevents the washer from sitting flat, which completely ruins its ability to create a seal or make full electrical contact.
To remove these burrs, the washers go through a process called tumbling or vibratory deburring.
- Loading: The freshly stamped washers are loaded into a large tub or barrel.
- Adding Media: They are mixed with an abrasive “media”—small, pre-formed pellets of ceramic, plastic, or other materials. A water-based compound is also added to aid in the cutting and keep the parts clean.
- The Action: The tub is then vibrated or tumbled, causing the washers to rub against the media and against each other.
- The Result: This constant, gentle friction wears down every sharp edge, removing all burrs and leaving a smooth, uniform, and safe-to-handle finish on every single washer.
Step 4: The Specialist Process – Machining Thick & Custom Washers
What about washers that are very thick (e.g., 8mm) or have a very large diameter? Stamping these is often impractical or requires an impossibly large and expensive press.
For these non-standard, custom, or low-volume orders, manufacturers use machining. This is a “subtractive” process where material is cut away to create the final shape.
- The Machine: This is typically done on a CNC (Computer Numerical Control) lathe.
- The Process: A solid rod of copper (bar stock) is loaded into the machine. The lathe spins the rod at high speed. Precision cutting tools then move in to:
- Drill and bore the inner hole to the exact diameter.
- Cut the outer diameter to its final size.
- “Part off” the finished washer from the end of the bar.
- Pros & Cons: Machining is incredibly precise and can create virtually any size or shape. However, it is much slower and creates more waste material, making it significantly more expensive per part than stamping.
Step 5: The “Magic” Step – Annealing for Sealing Washers
This is the most critical process that separates a standard washer from a high-performance sealing washer (also known as a “crush washer”).
The processes of rolling the copper sheet, stamping it, and tumbling it all “work-harden” the material. This makes the copper stiff, springy, and hard. A hard washer cannot create a seal; when tightened, it will resist deforming and will allow fluid to leak.
The solution is annealing.
- Heating: The finished, deburred washers are placed in a controlled-atmosphere furnace.
- Soaking: They are heated to a precise temperature (often several hundred degrees) and held there for a set amount of time. This heat relieves all the internal stresses built up during the cold-working processes.
- Cooling: They are then slowly cooled.
The result is a complete change in the copper’s crystal structure. The washer is now in its softest, most ductile state. When a mechanic or plumber installs this “dead soft” washer on a brake line or oil drain plug, it will “crush” and flow into every microscopic imperfection, creating a perfect, permanent, leak-proof seal.
This extra step is a hallmark of a quality Copper washers manufacturer, as it shows an understanding of the product’s final application.
Step 6: Final Quality Control and Packaging
The manufacturing process is complete, but the washers must be verified. This is the final quality gate.
- Dimensional Inspection: Inspectors use precision tools like digital calipers, micrometers, and go/no-go gauges to check a sample of washers from the batch. They verify the inner diameter, outer diameter, and thickness are all within the specified tolerance.
- Visual Inspection: Washers are checked for any remaining burrs, scratches, or surface imperfections.
- Hardness Testing: For annealed sealing washers, a hardness tester may be used to confirm that the material is in the “dead soft” condition and meets the specification for sealing.
Once the batch is approved, the washers are cleaned, dried, and packaged—often by count or weight—to be shipped to the customer, ready for their critical mission.
From a simple coil of pure copper to a precision-stamped, deburred, and perfectly annealed sealing component, the manufacturing of a copper washer is a science. It is this attention to detail at every step that ensures the washer will perform its job flawlessly, whether that is conducting a current safely or holding back a high-pressure fluid.
To source high-quality copper washers for any industrial application, you can contact Asiad Steel.
