In heavy industry, agriculture, and construction, hydraulic systems are the “muscles” that do the heavy lifting. From an excavator’s arm to a manufacturing press, these systems rely on the simple, powerful principle of pressurized fluid. At the absolute center of this power is the hydraulic cylinder, and at the heart of the cylinder is the honed tube.

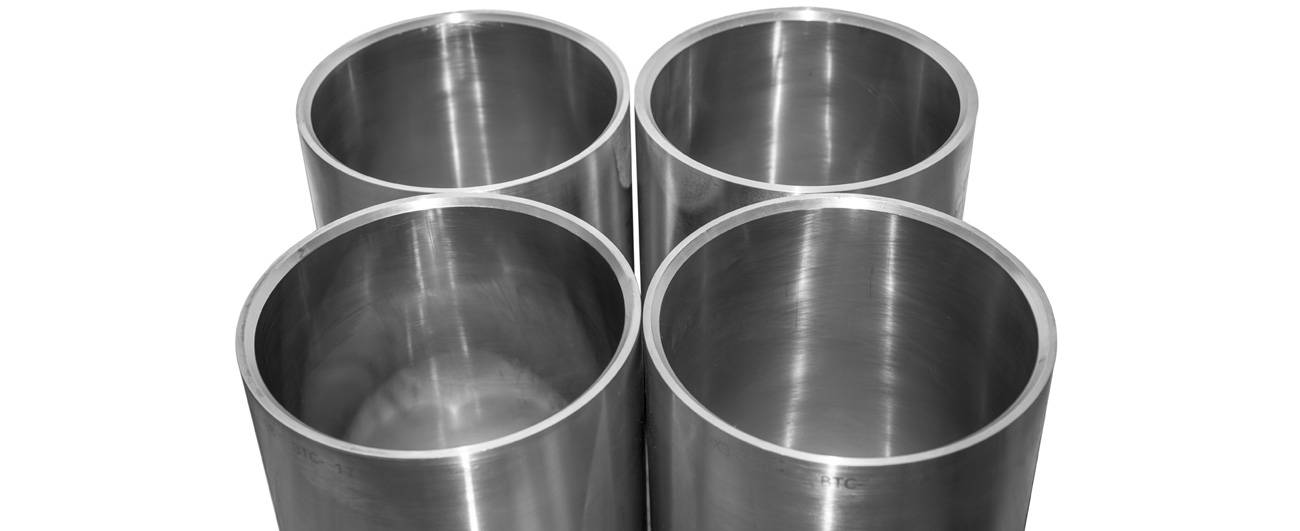

A honed tube is far more than just a strong pipe. It is a precision-engineered component with an internal bore finished to an exacting standard. Its specific surface finish—often featuring a “cross-hatch” pattern—is designed to work perfectly with a piston seal, allowing it to hold immense pressure while gliding smoothly with minimal friction.
Because this interface between the tube wall and the seal is so critical, its maintenance is paramount. A-well-maintained cylinder can last for millions of cycles. A neglected one can fail catastrophically, leading to costly unplanned downtime, expensive repairs, and significant safety risks.
The long-term performance of a honed tube is not a matter of luck; it is a direct result of a disciplined maintenance strategy. This article explores the essential practices to protect your investment and keep your hydraulic systems running efficiently.
Why Is Honed Tube Maintenance So Critical?
Before diving into the “how,” it is important to understand the “why.” The failure of a hydraulic cylinder almost always begins with a failure at the seal-to-tube interface.
The honed tube’s smooth, precise bore (often with a roughness average, or Ra, of just 0.1 to 0.4 µm) is designed to be a perfect sealing surface. The fine cross-hatch pattern on this surface retains a thin film of oil, which lubricates the seal as it moves.
When this system is compromised, a chain reaction begins:
- Contamination: Small particles (dirt, metal fragments) are introduced into the fluid.
- Scoring: These particles get trapped by the piston seal and are dragged back and forth across the smooth bore.
- Leakage: The particles cut microscopic grooves—or “scores”—into the tube wall. These scores create a leak path, allowing high-pressure fluid to “blow by” the seal.
- Performance Loss: The cylinder loses power, becomes sluggish, and can no longer hold its position.
- Failure: If left unaddressed, the scoring deepens, the seal is destroyed, and the entire cylinder must be disassembled and re-honed or, in a worst-case scenario, completely replaced.
All maintenance efforts are focused on preventing this chain reaction from ever starting.
The #1 Enemy: Contamination
If there is one single word to focus on in hydraulic maintenance, it is contamination. It is estimated that over 75% of all hydraulic system failures are a direct result of contaminated fluid.
This contamination comes in three main forms:
- Particulate Contamination: This is the most destructive. It includes dirt and dust from the environment (which gets in through worn seals) and small metal fragments from the internal wear of pumps and other components.
- Water Contamination: Water can enter through temperature changes (causing condensation) or worn seals. It degrades the hydraulic oil, reduces lubrication, and can cause rust and corrosion on the honed tube’s surface.
- Air Contamination: Air in the system can lead to “cavitation,” where air bubbles violently implode under pressure. These micro-explosions are powerful enough to pit and erode the smooth surface of the honed tube and other components.
Every maintenance tip, in one way or another, is about controlling and eliminating these three forms of contamination.
Essential Maintenance Practices for Honed Tubes
Protecting the honed tube means protecting the entire hydraulic ecosystem. These practical steps are the key to a long and reliable service life.
1. Maintain Hydraulic Fluid Purity (The Top Priority)
The hydraulic fluid is the “blood” of the system. Keeping it clean is the most important maintenance task.
- Implement Strict Filtration: Ensure the correct, high-quality filters are installed. This includes pressure filters, return-line filters, and off-line (kidney loop) filters.
- Follow Filter Schedules: Do not wait for a filter’s bypass indicator to light up. That indicator means the filter is already clogged and contaminated fluid is now bypassing it and flowing freely through your system. Change filters based on the manufacturer’s recommended service hours.
- Use Clean Equipment: When adding or changing hydraulic fluid, use dedicated, clean transfer equipment (pumps, funnels, and containers). An open, dirty bucket is a guarantee of contamination.
- Regular Fluid Analysis: Take periodic samples of the fluid and send them to a lab. This analysis will identify the type and amount of contamination, spotting problems like water intrusion or excessive component wear long before they cause a failure.
2. Inspect and Protect Rod Wipers and Seals
The rod wiper is the cylinder’s first line of defense. It is the seal visible on the outside of the cylinder that scrapes the piston rod clean before it retracts back into the barrel.
- Regular Visual Inspection: Visually inspect the rod wipers for nicks, cuts, or signs of wear. A damaged wiper is an open door for dirt, dust, and moisture.
- Immediate Replacement: Rod wipers and seals are inexpensive, sacrificial parts. A cylinder failure is not. Replace them at the first sign of wear or leakage. Do not wait for a small drip to become a major leak.
3. Protect the Piston Rod
The condition of the piston rod is directly linked to the health of the honed tube. The rod is the only component that moves both inside and outside the cylinder.
- Prevent Pitting and Rust: A rusty or pitted rod surface will act like a file, tearing apart the rod wiper and dragging contaminants into the cylinder. These contaminants will then destroy the internal piston seal and score the honed tube.
- Guard Against Impact: Protect exposed rods from physical damage. Weld spatter, falling tools, or impacts from other machinery can create dents and dings. These damaged spots will destroy the seals.
- Proper Storage: If a machine is sitting idle, the rod should be stored in the retracted position (inside the cylinder) to protect it. If it must be extended, coat it with a layer of grease or rust preventative.
4. Ensure Proper System Operation and Alignment
How the cylinder is used has a major impact on its life.
- Avoid Side-Loading: Hydraulic cylinders are designed to push and pull in a straight line. “Side-loading” occurs when the cylinder is forced to take on a load at an angle. This puts immense pressure on one side of the piston, causing a localized “hot spot” of wear on the piston seal and the honed tube wall.
- Check Mounts and Alignment: Regularly inspect the cylinder’s mounting pins and alignment. Loose or worn-out mounts can contribute to side-loading and vibration, both of which accelerate wear.
- Operate Within Limits: Do not exceed the manufacturer’s specified operating pressure. Over-pressurizing the system creates excess stress on all components, including the seals.
5. The Importance of a Quality Supplier
Finally, long-term performance begins at day one. The quality of the honed tube itself plays a massive role in its resilience to wear and tear. A tube with a sub-par surface finish, inconsistent hardness, or poor geometric tolerances will fail much faster, even with a good maintenance routine.
This is why partnering with a reputable honed tubes supplier is a critical, long-term maintenance decision. An experienced supplier provides material that meets all technical specifications, including:
- Correct Material Grade: Such as E355 (ST52), which has the required strength.
- Certified Surface Finish: A verified Ra value and a proper cross-hatch pattern.
- Precise Tolerances: A guaranteed H8 or H9 internal diameter for a perfect seal fit.
Starting with a high-quality, certified component is the best way to ensure your maintenance efforts will be successful.
In conclusion, the honed tube is a precision component that demands a proactive maintenance strategy. By focusing on the “big three”—absolute fluid cleanliness, the integrity of the seals, and the condition of the piston rod—you can prevent the contamination that leads to scoring and failure.
To source the best high-performance honed tubes for your hydraulic systems, you can contact Dhanlaxmi Steel.
