Hastelloy is not an ordinary metal. This family of nickel-based superalloys is a material of last resort, specified for the most extreme industrial environments on earth. Where stainless steel would dissolve in minutes, Hastelloy thrives, offering unparalleled resistance to aggressive acids, high-temperature gases, and severe pitting.

This elite performance, however, comes at a high price—not just in material cost, but in fabrication complexity. Hastelloy is notoriously challenging to weld. The very properties that make it so durable also make it unforgiving. A single mistake in the welding process can turn a multi-thousand-dollar component into a piece of scrap.

The weld seam is the single most critical point in any fabricated Hastelloy component. If the weld is not perfect, it will become the “weak link” that corrodes first, compromising the integrity of the entire system. Therefore, understanding and applying the correct welding techniques is not just a best practice; it is an economic and safety necessity.

This guide provides a comprehensive overview of the essential techniques and best practices for successfully welding Hastelloy using matching electrodes.

Why Is Welding Hastelloy So Difficult?

The challenges of welding Hastelloy stem from its unique metallurgy. Unlike simple carbon steel, these nickel-based alloys have a complex structure that is sensitive to heat and contamination.

• Heat Sensitivity: The primary challenge is controlling heat input. Excessive heat in the weld or the surrounding Heat-Affected Zone (HAZ) can cause “sensitization.” This is a metallurgical phenomenon where chromium and carbon in the alloy combine to form chromium carbides. This process “steals” chromium from the metal’s protective structure, making the area highly susceptible to corrosion.
• Sluggish Puddle: Nickel alloys are known for having a “sluggish” or viscous weld puddle compared to steel. It does not flow as easily, which requires more skill from the welder to ensure proper fusion and prevent “cold lap.”
• Risk of Cracking: These alloys can be susceptible to “hot cracking” as the weld solidifies. This requires careful control of the weld bead shape and composition.
• Contamination: The alloys are extremely sensitive to contamination. Elements like sulfur, lead, and even residue from shop dirt or oils can be catastrophic, causing severe embrittlement and weld cracking.

The Golden Rule: Preparation and Surgical Cleanliness

If you take only one piece of advice from this article, let it be this: cleanliness is everything. You cannot over-clean a Hastelloy joint. The metal must be “surgically clean” before a single arc is struck.

1. Degreasing: The joint and the surrounding area (at least two inches on either side) must be thoroughly cleaned of all oil, grease, paint, cutting fluids, and other hydrocarbons. Use a residue-free solvent like acetone or a dedicated, non-chlorinated degreaser.
2. Brushing: After degreasing, the surface oxides must be removed. This must be done with a new, dedicated stainless steel wire brush. Never, under any circumstances, use a brush that has been used on carbon steel. The tiny embedded iron particles will contaminate the weld and become instant rust points. This brushing should be done just before welding.
3. No Contaminants: Ensure that marking tools are sulfur-free (use a “sulfur-free” marking crayon, not a standard Sharpie or paint pen). Even the oils from a welder’s hands or gloves can be enough to cause porosity.

Best Practices for Heat Control and Technique

The goal of every technique is to minimize total heat input. This protects the alloy’s corrosion-resistant properties.

• Keep Heat Input Low: This is the central theme. Use the lowest possible amperage setting that still allows for good fusion. Travel speed should be steady and relatively fast—do not linger in one spot.
• Use Stringer Beads: Avoid wide, weaving motions. A “weave” bead puts excessive heat into the plate and slows down the cooling process, increasing the risk of sensitization. Instead, deposit narrow, straight stringer beads. If a joint needs to be filled, use multiple small stringer beads.
• Mind Your Interpass Temperature: The interpass temperature is the temperature of the workpiece between weld passes. This must be kept low. For most Hastelloy grades, the interpass temperature should not exceed 100°C (212°F). Use a temperature-indicating crayon to check the joint before starting the next pass. Let it air cool; never quench it with water.
• Proper Joint Design: A narrow, “U-shaped” joint, which is common in steel welding, can be problematic. A wider “V-groove” (around 60-80 degrees) is preferred. This gives the welder better access to the root of the joint, ensuring full penetration and preventing lack of fusion at the side walls.

Choosing the Right Welding Process

While several processes can be used, some offer far better control than others.

1. TIG (GTAW – Gas Tungsten Arc Welding)

This is the preferred method for most Hastelloy welding, especially for root passes and thinner materials (under 1/8 inch).

• Why: It offers the most precise control over heat input and bead placement. It is an exceptionally clean process with no spatter.
• Gas: Use 100% argon shielding gas for the torch.
• Back Purging: For all full-penetration welds (like on pipe), a back purge is mandatory. This involves filling the inside of the pipe or component with argon gas to protect the “root” side of the weld from oxygen, which would cause severe, damaging oxidation.

2. MIG (GMAW – Gas Metal Arc Welding)

MIG welding is a good choice for thicker sections where higher deposition rates are needed.

• Why: It is much faster than TIG for filling large joints.
• Transfer Mode: A “spray arc” or “pulsed spray” transfer mode is generally recommended. A short-circuit transfer is too cold and can cause fusion problems with the sluggish puddle.
• Gas: Use a shielding gas mixture, often 75% Argon / 25% Helium, or other specialized tri-mixes. Avoid using any CO2 in the mixture, as it can react with the weld.

3. Stick (SMAW – Shielded Metal Arc Welding)

This process is common for field repairs and in situations where TIG or MIG is not practical.

• Why: It is portable and versatile.
• Technique: The electrode should be kept dry as per the manufacturer’s instructions. Use a “drag” or slight back-and-forth motion rather than a wide weave. Keep the arc length short to maintain good shielding from the flux.

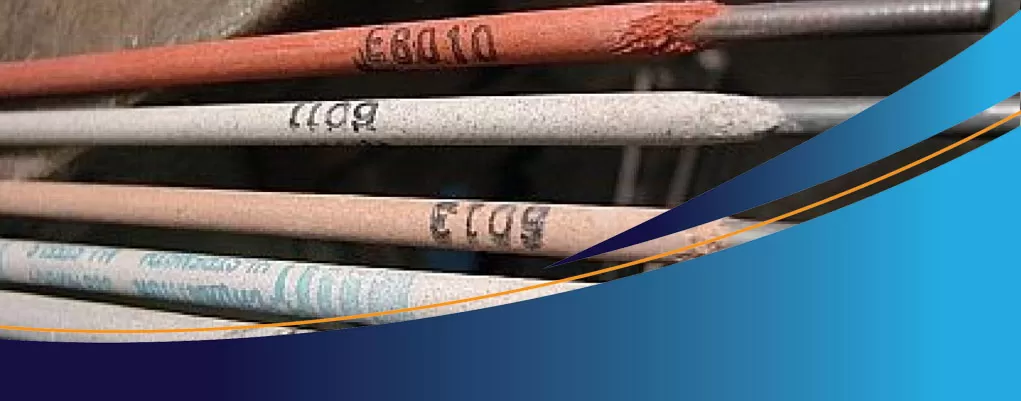

The Role of the Electrode: Your Most Critical Consumable

The welding electrode (or filler wire) is not just a filler. It is a highly engineered consumable designed to create a weld bead with the correct chemical composition.

The filler metal must, at a minimum, “match” the corrosion resistance of the base metal. In many cases, it is designed to “over-match” it with a higher alloy content to compensate for any slight dilution from the base metal.

• For Hastelloy C-276, the matching electrode is ERNiCrMo-4 (TIG/MIG) or ENiCrMo-4 (Stick).
• For Hastelloy C-22, the matching electrode is ERNiCrMo-10 (TIG/MIG) or ENiCrMo-10 (Stick).

Using the wrong electrode is a guarantee of weld failure. This is why sourcing your materials from a specialized and reputable hastelloy welding electrodes manufacturer is essential. A quality manufacturer provides certified materials, ensuring the chemical composition of the electrode is exact and that the consumables are free from impurities.

Post-Weld Cleaning and Treatment

The job is not finished when the arc goes out.

• Post-Weld Cleaning: The weld and surrounding area must be thoroughly cleaned again. The heat from welding creates a discolored oxide layer (the “heat tint”). This layer has lower corrosion resistance and must be removed, either by brushing with a new stainless steel brush or by chemical cleaning with a pickling paste.
• Post-Weld Heat Treatment (PWHT): Unlike many alloy steels, Hastelloy should not be stress-relieved or subjected to post-weld heat treatment. PWHT can actually damage the alloy, causing a loss of toughness and corrosion resistance by precipitating harmful new phases in the metal.

Conclusion

Welding Hastelloy is a high-stakes, high-skill operation. It demands a level of discipline, cleanliness, and control far beyond that of standard steel fabrication. But by respecting the material’s unique metallurgy—by keeping it clean, keeping the heat low, and using the correct, high-quality electrodes—a skilled fabricator can create a component that will perform flawlessly for decades in the most brutal environments imaginable.
