Modern HVAC systems are becoming smarter, more efficient, and more adaptable — but that sophistication depends on proper wiring. For contractors, understanding the nuances of mini-split and heat pump wiring is essential not only for system performance, but also for long-term reliability and customer satisfaction.
This guide breaks down what every HVAC professional should know about wiring mini-split and heat pump systems — from layout planning to safety practices and emerging technology trends.
1. The Wiring Foundation: Know the System Before the Wire
Every HVAC project starts with a system review. Before wiring a mini-split or heat pump, confirm three key details:
System configuration: single-zone, multi-zone, or variable refrigerant flow (VRF).
Voltage and amperage: most residential systems operate on 208/230V single-phase, but larger units may require three-phase power.
Control method: wired vs. wireless communication between indoor and outdoor units.
Each manufacturer has its own control logic and wiring conventions. Some use dedicated communication cables between indoor and outdoor units, while others rely on a shared power and data line. Always follow the wiring diagram provided with the unit — no exceptions. Even experienced technicians can make costly mistakes assuming all systems wire the same way.
2. Mini-Split Wiring Essentials
Mini-split systems are prized for their simplicity, but their wiring still demands precision.
Power and communication wiring:
Typically, a mini-split uses a 4-conductor cable (L1, L2, communication, and ground) running from the outdoor condenser to each indoor air handler. Keep wire gauge consistent and match it to both amperage and distance. For most residential applications, 14/4 or 12/4 stranded copper cable rated for outdoor use is standard.
Polarity matters. Miswired terminals (e.g., swapping “S1” and “S2” communication lines) can cause erratic operation or total system failure. Always double-check terminal labeling before energizing.
Line-set routing:
Run wiring alongside refrigerant lines in a protective conduit or chase. This not only ensures a neat appearance but also shields cables from UV, moisture, and mechanical damage.

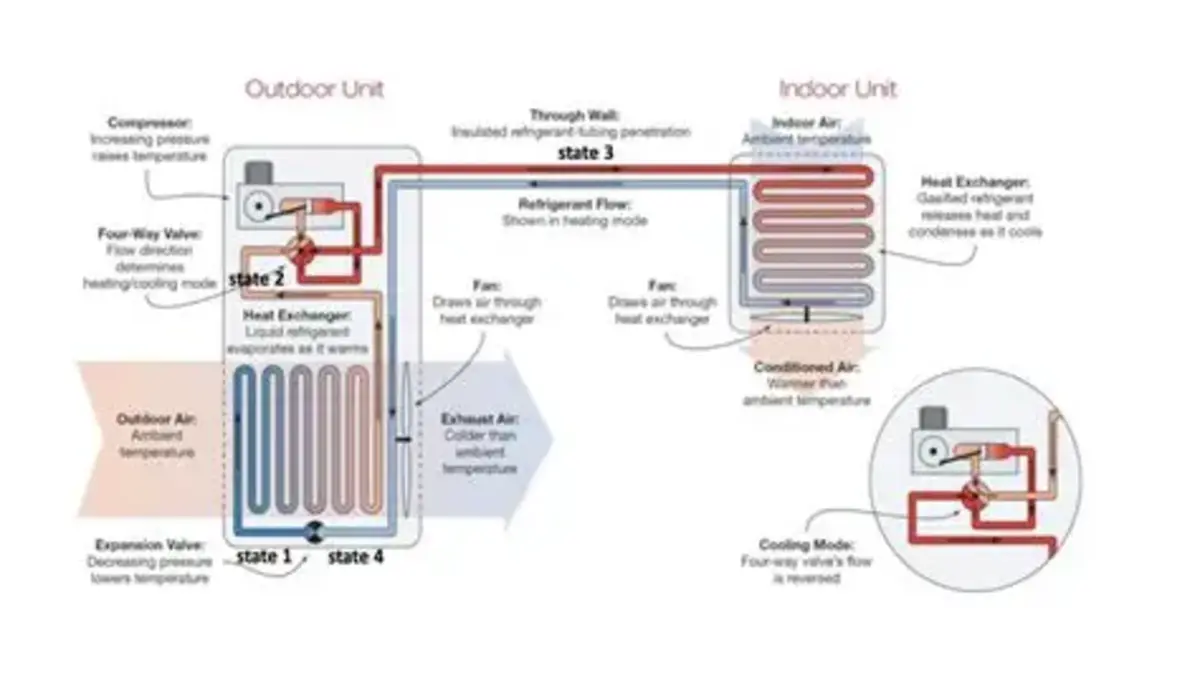

3. Heat Pump Wiring: More Connections, More Responsibility
Heat pumps are more complex than mini-splits, especially when integrating with auxiliary heat sources, thermostats, or multi-stage systems.
Control wiring overview:
A typical heat pump wiring harness includes connections for:
- 24V power (R and C)
- Compressor contactor (Y1/Y2)
- Reversing valve (O/B)
- Fan relay (G)
- Auxiliary or emergency heat (W1/W2)
Modern heat pumps often use advanced communicating thermostats or proprietary control boards. When integrating third-party thermostats, confirm compatibility and wiring sequence — some systems require adapter modules to interpret signals correctly.
Outdoor disconnect and breaker sizing:
Each heat pump requires a fused disconnect within line-of-sight and properly sized overcurrent protection. Follow both the NEC (National Electrical Code) and local standards for conductor sizing and breaker ratings.
4. Grounding, Bonding, and Safety Practices
Even minor grounding errors can cause control board failure or nuisance faults.
Ground every unit individually. Never daisy-chain grounds between indoor units.
Use bonding jumpers to ensure metallic raceways are electrically continuous.
Surge protection devices (SPDs) are strongly recommended, especially in lightning-prone regions. Many manufacturers now offer integrated or add-on surge protectors designed specifically for heat pumps.
Routine safety checks should include continuity testing, insulation resistance testing, and polarity verification before startup.
5. Common Wiring Mistakes (and How to Avoid Them)
1. Undersized conductors: leads to voltage drop and compressor malfunction.
2. Skipping the communication wire shield: causes signal interference and erratic controls.
3. Poor termination: loose screws or corroded terminals result in intermittent faults.
4. Ignoring manufacturer polarity conventions: especially common when mixing indoor and outdoor units from different series.
Always inspect each connection before energizing — a five-minute check can prevent hours of troubleshooting later.
6. Smart Controls and Emerging Trends
Today’s heat pumps and mini-splits often feature Wi-Fi-enabled controls and IoT connectivity, allowing integration with home automation systems. Many newer models use low-voltage data buses rather than traditional 24V thermostats, simplifying wiring but requiring proper cable types and termination resistors.
Contractors who stay current with these trends can offer higher-value installations and faster diagnostics using manufacturer apps and digital service tools.
7. Final Checklist for Contractors
Before leaving a job site, confirm:
- All circuits are properly labeled.
- Communication wires are correctly polarized.
- Line voltage matches unit specifications.
- Ground and neutral separation is correct.
- System startup diagnostics show stable communication and current draw.
These steps ensure your wiring meets both performance and safety expectations — the foundation of every reliable HVAC installation.
The Bottom Line
Whether wiring a compact single-zone mini-split or a complex heat pump array, attention to detail defines professional craftsmanship. Correct heat pump wiring isn’t just about connecting terminals — it’s about ensuring longevity, efficiency, and peace of mind for your customers.
For contractors who wire smart and wire safe, every connection is an investment in reputation and reliability.
